2006 Jung JE-525-p
2006 Jung JE-525-p
Vraag ons om de prijs
Beschrijving

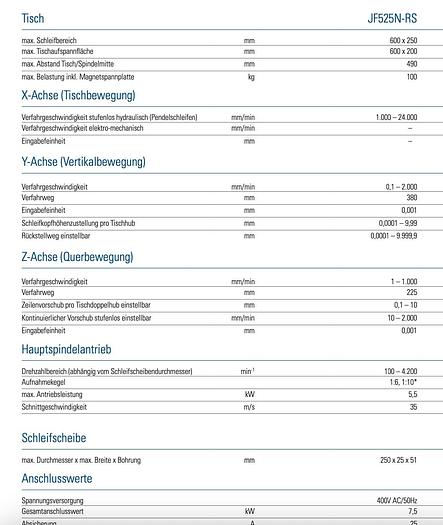

Maximum grinding lenght x width
600 x 250 [mm]
Stroke X axis (table movement)
660 [mm]
Min. Stroke speed X axis
5 [mm/min]
Max. Stroke speed X axis
24000 [mm/min]
Resolution X axis
0.0001 [mm]
Stroke Y axis (vertical movement)
385 [mm]
Min. Stroke speed Y axis
0.1 [mm/min]
Max. Stroke speed Y axis
2000 [mm/min]
Resolution Y axis
0.0001 [mm]
Course axe Z (transverse movement)
225 [mm]
Min. Stroke speed Z axis
0.1 [mm/min]
Max. Stroke speed Z axis
2000 [mm/min]

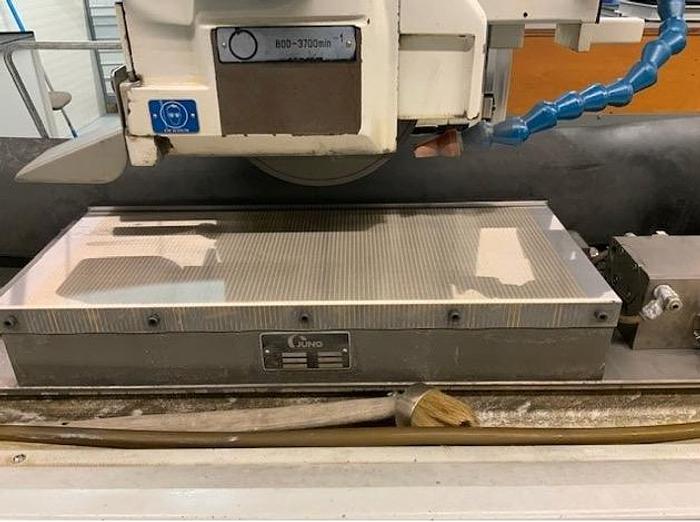

Table length
600 [mm]
Table width
200 [mm]
Max. distance spindle nose / table
490 [mm]
Max. load on table
100 [Kg]
Grinding wheel min. speed
800 [rpm]
Grinding wheel max. speed
4200 [rpm]
Grinding spindle motor power
5 [kW]
Max. diameter grinding wheel
250 [mm]
Max. grinding wheel width
25 [mm]
Grinding wheel bore
51 [mm]

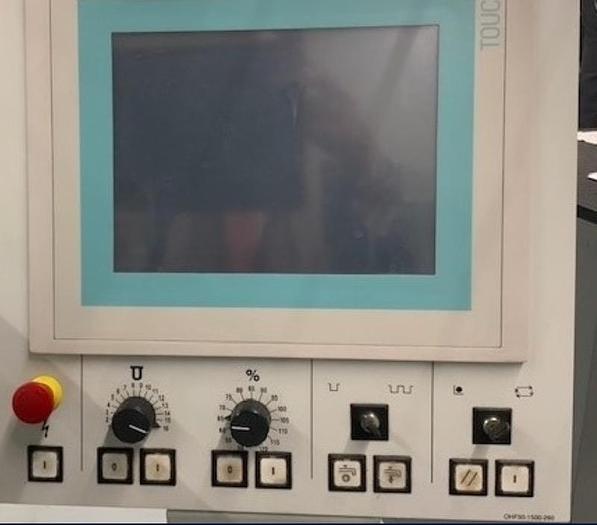

Touch control panel
SIEMENS Simatic Multipanel TOUCH
Supply voltage
400 [V]
Rated current
25 [A]
Total power required
10 [kVA]
Dimensions
3000 x 2050 x 2440 [mm]
Weight
1850 [Kg]
Specificaties
| Fabrikant | Jung |
| Model | JE-525-p |
| Jaar | 2006 |
| Conditie | Gebruikt |
| Serienummer | n-v-t |
