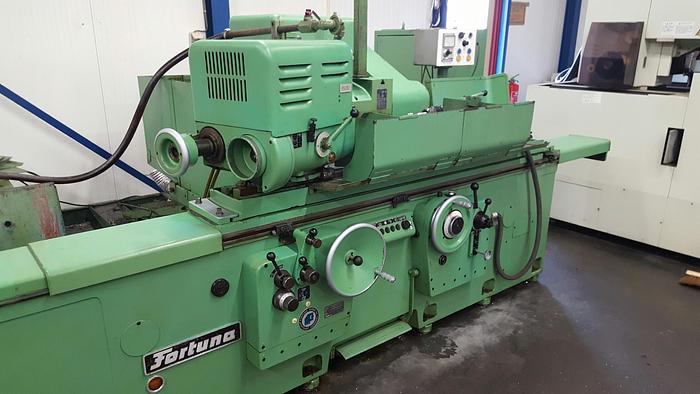

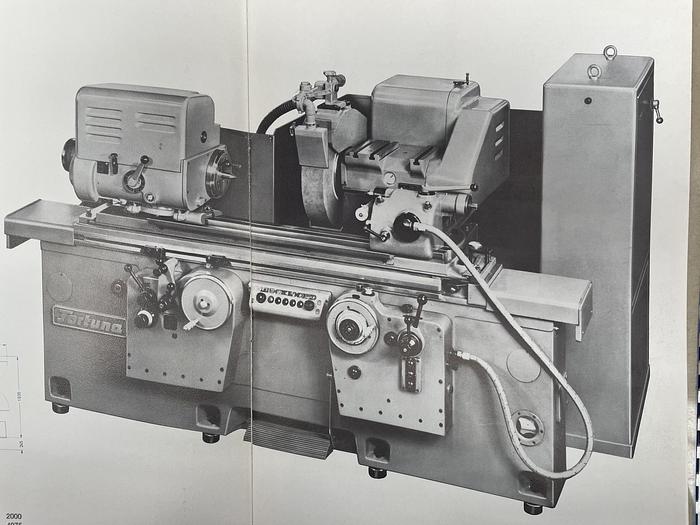

Fortuna (Gereserveerd)

Centre height 175 mm

Distance between centres 1000 mm

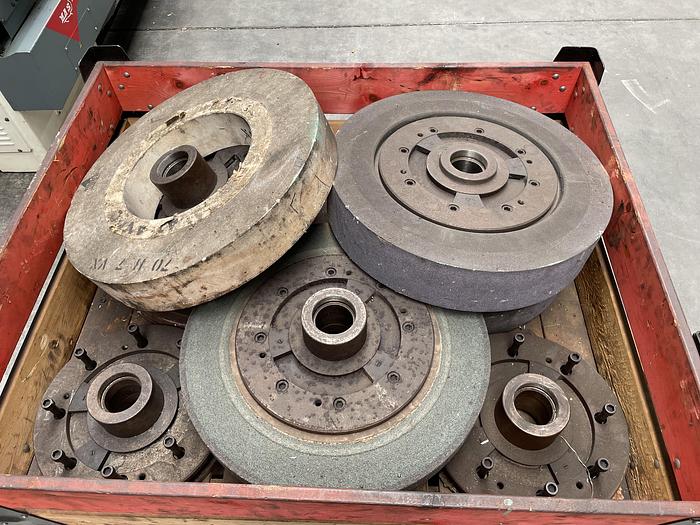

Grinding wheel:

Diameter 500 mm

Width 125 mm

Bore 203 mm

Max. grinding diameter 350 mm

Workpiece weight on centres max. 300 kg

Work piece spindle head:

speeds:

number (steps) 9

from 25 rpm

up to 265 rpm

Table speed:

number (steps)

from 0.05 m/min

up to 265 m/min

External Grinding wheel motor 5.5 kW

Workpiece spindle motor 1.1 kW

Total power required 8 kW

Machine's weight about 4350 kg

Overall dimensions machine:

Length 3400 mm

Width 2500 mm

Height 1820 mm
